RFC4800 Series Touchless Rotary Angle Sensors

Novotechnik's RFC4800 Series touchless rotary angle sensors are available with analog, digital, redundant or switch output options.

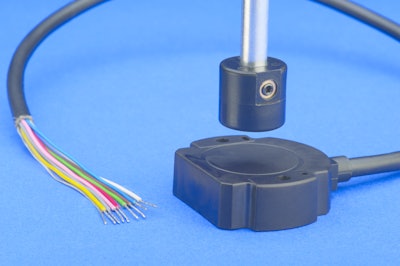

Novotechnik Rfc4800touchlessro 11321931

Novotechnik U.S. introduces the RFC4800 Series of touchless rotary angle sensors that provide absolute, rotary position. Output options for analog, digital, redundant and switch outputs are standard.

  • Utilizes a magnetic pickup to provide a touchless measurement range of 0 to 360 degrees
  • Key specifications include ingress protection from liquids and dust to IP69K standards
  • Offers resolution to 12 bits, repeatability of 0.1 degree and independent linearity of ±0.5%
  • Outputs include SSI, Incremental, SPI, 0.1 to 10V, 4 to 20 mA, 0.25 to 4.75V - ratiometric to supply, 0.5 to 4.5V - ratiometric, 2 PNP switches and redundant analog
  • Switches feature positive switched outputs, width of switching zone is user- or pre-programmable, edge width of switch ≤ 0.1 degree and accuracy of switch edges is ±1 degree
  • Magnetic marker mounts to a shaft on users application up to 25 mm from sensor
  • Designed to withstand shock and vibration up to 100G/20G
  • ?Features operating temperature range of –40 to 85 C
