T-Series Industrial Inclinometer

The T-Series industrial inclinometer from BEI Sensors provides measurement of slope or tilt angles of an object with respect to gravity.

Bei Sensors Inclinometers 11461271
Bei Sensors Logo Highres 10719595

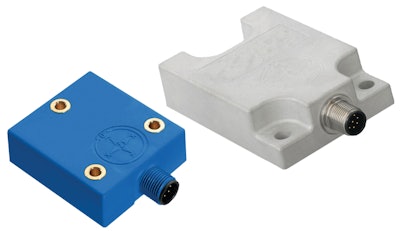

BEI Sensors introduces the T-Series industrial inclinometer, a compact and high performance sensor for measurement of slope or tilt angles of an object with respect to gravity.

  • Features advanced MEMS technology, which offers the best combination of precision and responsiveness for the industrial marketplace
  • Offers a wide range of motion feedback including dual axis up to ±60 degrees or single axis of 360 degrees, with resolution of 0.01 degree and accuracy of 0.1 degree
  • Incorporates built-in linearity and temperature compensation, both for offset and sensitivity
  • Provides mechanical stability with a completely encapsulated sensor and a glass fiber reinforced plastic or an AW6082-T6 aluminum alloy housing
  • Plastic housing is manufactured with automotive-grade UV-resistant material with UL 94 V-0 classification for safety of flammability
  • Available output options include 4-20mA or 0.5 to 4.5V for a simple analog interface, or a CANopen output for ease of integration into existing bus systems
  • Compact design and simplicity provides robustness in high shock and vibration environments
  • For use in harsh outdoor applications
  • Easy-to-mount design
  • Sealed up to IP68
  • Can withstand IP69K washdown environments when properly mounted with a sealed mating connector
  • Well suited for tilt measurement applications on industrial equipment such as mobile cranes, forklifts, drilling towers, construction and agricultural machinery
