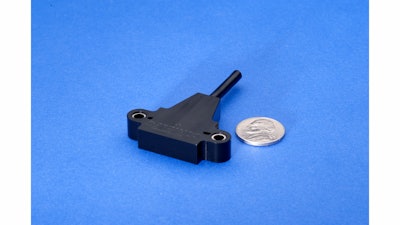

Vert-X 32E Series Touchless Magnetic Angle Sensors

The Novotechnik Vert-X 32E Series magnetic angle sensors feature a permanent magnet to eliminate mechanical linkage between the shaft and measuring system to reduce wear.


Novotechnik U.S. introduces the Vert-X 32E Series of programmable rotary angle sensors.

  • Touchless magnetic angle design
  • Permanent magnet can be secured to a rotating shaft, eliminating direct mechanical linkage between shaft and measuring system to reduce wear
  • Features CANopen interface
  • Offers CiA certified serial communications output
  • Supports real-time control
  • Programmable through programming device connected between sensor and computer’s USB port and software called EasyAdapt which runs on Windows PCs
  • EasyAdapt allows selection from six default set ups or use of one as a starting point for customization
  • Allows programming of output characteristics including custom characteristic curve, angle range, zero point and curve, and gradient direction versus direction of rotation
  • Single and redundant versions available
  • Features 38 mm width centered on mounting holes
  • Offers 0 to 360 degree measurement range, resolution to 16-bit, repeatability of 0.1 degree or better, and maximum hysteresis of 0.1 degree
  • Provides wide 8 to 35V supply range
  • Includes ingress protection rating of IP68 and operating range of -40 to 85 C
  • Programmability makes it possible for some applications to reduce hardware design complexity, lower costs through stocking one part for multiple products and eliminating need for certain other parts
