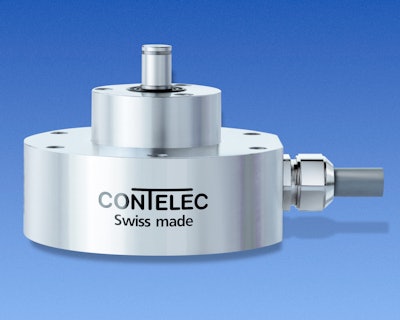

Novotechnik U.S. introduces the Contelec brand of Vert-X 8800 Series of non-contact angle sensors.
- Diameter of stainless steel housing base measures 88 mm
- Measurement range is 0 to 360 degrees with repeatability of 0.1 degree and linearity to ±0.1%
- Analog and digital output versions include CANopen single and redundant, 0.1 to 10V, 0.5 to 4.5V, 4 to 20 mA and 10 to 90% of supply voltage
- CANopen versions are CiA certified
- Includes 14-bit resolution
- Some versions are programmable
- Characteristics that can be programmed are index point(s), sense of rotation and angle settable response switches
- Sealed to IP69K
- Lifespan is greater than 360 million movements and MTTF is over 145 years
- Designed to operate in harsh environments and have high immunity to emissions
- Meets or exceeds five EN 61000 and two EN 55000 standards
