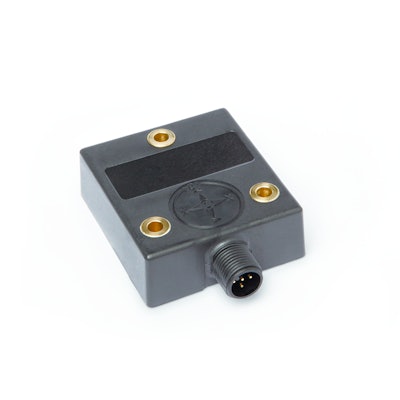

SIKO IK360L Inclinometer

The IK360L inclinometer from SIKO is available in a single-axis or dual-axis version.

SIKO IK360LInclinometer
Siko 591ddf9bc6627

SIKO has expanded its inclinometer product range with the IK360L, incorporating a sensor with system accuracy to within +/- 0.5 degrees.

  • Features black, glass-fiber reinforced PBT housing
  • Simple installation using three-point assembly method
  • IP protection classes IP67, IP68 and IP69k allow extended immersion in water and cleaning, even with a high-pressure steam jet
  • Tilt or angular position is detected on an absolute basis, meaning no recalibration of the actual position is required when the supply voltage is interrupted
  • Available as a single-axis version (0 to 360 degrees) or dual-axis version (+/- 80 degrees)
  • Supplementary functions available such as teach-in functions for direct on-site zero-point setting or change-in rotation direction
  • Compact design with built-in electronic evaluation
  • Temperature range of -10 to 40 C
  • Resolution of 0.01 degree
  • Response time of 10 ms (without filter)
  • Various interfaces available including RS232+I, RS232+U (0 to 10V) or CANopen (bus capable)
