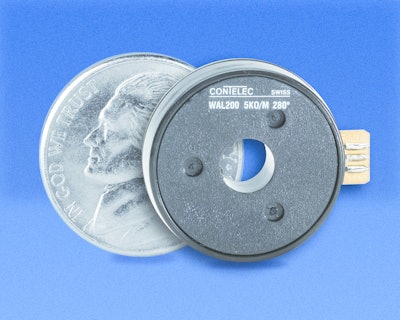

Novotechnik U.S. introduces the WAL 200 Series of hollow shaft angle sensors.
- Provides absolute, rotary position
- Dimensions are 7 x 22 mm
- Measurement range of 0 to 340 degrees
- Mechanical range is a continuous 0 to 360 degrees
- Features resolution of < 0.3 degrees and repeatability of 0.3 degrees
- Independent linearity of ±1% of measurement range
- Use of absolute sensor technology enables continuous angle tracking even if power is removed, reporting correct position when power is restored
- Minimum life of 2 million mechanical movements
- Cable and connector versions are available
