Novotechnik RSC3200 Series Angle Sensors

The RSC3200 Series angle sensors from Novotechnik are sealed to IP67 or IP69K standards for use in harsh operating environments.

Novotechnik RSC3200SeriesAngleSensors 564b6c21d392c

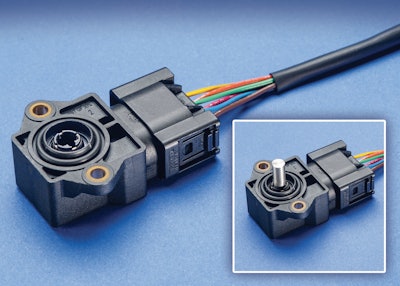

Novotechnik U.S. introduces the RSC3200 Series of angle sensors.

  • Features shaft connectivity options and provides absolute, rotary position measurement
  • Analog outputs are 0.25 to 4.75V or 0.5 to 4.5V
  • Built-In coupling accepts D-Shaft with shaft customization available
  • Sealed to IP67 or IP69K depending on version
  • Extremely durable with MTTF of 285 years for each of the two channels
  • Non-contacting design and fully redundant
  • Measures angles up to 360 degrees
  • Operating temperature range is -40 to 125 C
  • Offers repeatability of 0.5 degrees
  • Resolution is 12-bit and absolute linearity is within ±1.0% FS at 360 degrees
  • Meets six EMC standards for immunity to EMI including ISO 11452-5, ISO 10605 and CISPR 25
  • Applications include use for throttle control valves, transmission gear position and accelerator position
