MEMSIC MTLT Series Inclination and Tilt Sensors

The MTLT Series of inclinometer and tilt sensors from MEMSIC feature programmable tilt alarms for use in tilt safety applications.

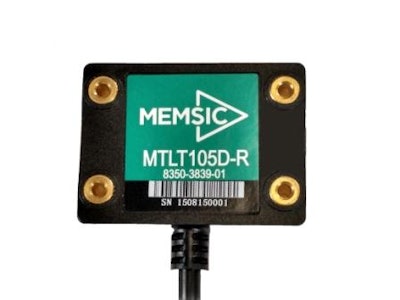

MEMSICInc MTLT105DInclinationandTiltSensor 56a7b547b743b

MEMSIC Inc. has launched the MTLT Series of Inclination and Tilt Sensors.

  • MTLT110S-R, MTLT105S-R and MTLT105D-R models are currently available
  • Well suited for a wide range of static and dynamic applications in construction and industrial markets such as boom tilt monitoring, bucket loader roll back protection, PV/CSP solar tracking systems and others
  • IP67 rated
  • Features integrated RS-232 interface and flying lead cable operating from 9-32V single supply
  • MTLT105S is designed for applications needing <0.5 degree accuracy and the MTLT110S for <1.0 degree over the full operating temperature range
  • Includes programmable tilt alarms for tilt safety applications
  • Alarm can be programmed to be triggered to activate when tilt exceeds specified threshold
  • Tilt alarm can also be used to lock out controls or trigger an alarm or warning light
  • Provides all-in-one tilt safety solution, eliminating need for external microprocessor to interpret tilt angles
  • Utilizes Micro Electro-Mechanical System (MEMS) sensor technology
  • Features extensive over-temperature calibration and MEMSIC’s SmartSensing technology
