Novotechnik Vert-X 31E Series Rotary Angle Sensors

The Novotechnik Vert-X 31E Series rotary angle sensors feature a permanent magnet which can be secured to an application's rotating shaft to eliminate wear.

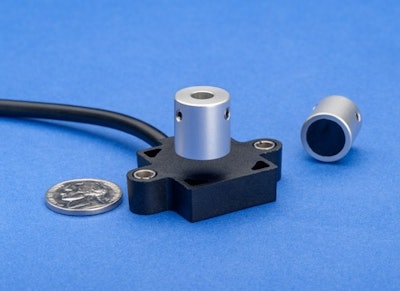

Novotechnik VertX31ESeriesAngleSensor 57026c124a8f9

Novotechnik U.S. introduces the Vert-X 31E Series of rotary angle sensors.

  • Touchless magnetic design
  • Permanent magnet can be secured to an application’s rotating shaft, so there is no direct mechanical linkage between shaft and measuring system, and therefore no wear
  • Includes basic connect and done models, and programmable models
  • Models in second category are programmed through a programming device connected between sensor and computer’s USB port and software called EasyAdapt which runs on Windows PCs
  • Users can select from six default setups or use one as a starting point and customize it
  • Output characteristics including custom characteristic curve, angle range, zero point, and curve, as well as gradient-direction versus direction of rotation can be programmed
  • Can be ordered with custom factory programmed characteristics defined by users
  • Custom characteristic curves include log, step, sinusoidal, sawtooth and other functions
  • Features 31 mm profile and 0-360 degree measurement range
  • Delivers resolution to 14-bit, repeatability of 0.1 degree or better, and maximum hysteresis of 0.1 degree
  • Eight output options are available: 0.1-10V, 0.5-4.5V, 4-20 mA, 10-90% of power supply, SSI, PWM, Incremental and SPI
  • Includes 5 and 24V supply models
  • Five volt versions have an MTBF of more than 300 years and 24V versions are 240 years
  • All models feature ingress protection rating of IP68
  • Operating temperature range is -40-85 C (-40-185 F)
  • Withstands shock and vibration to 200 g and 50 g respectively
