Trombetta J1939 Inclinometer

Trombetta's J1939 Inclinometer features MEMs technology to precisely output angular data.

April 25, 2016
Trombetta Corporation

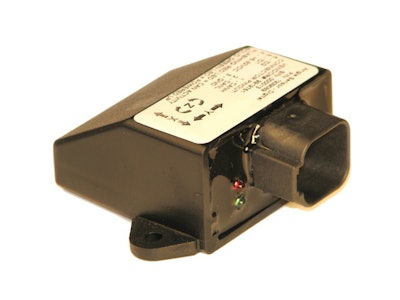

Trombetta TR16203Inclinometer 571e69e7db136
Trombetta Logo 2011 Blk PMS1795 571e679ea424f

The Trombetta J1939 Inclinometer utilizes solid state technology.

  • MEMs technology precisely outputs angular data to J1939 bus
  • Available in single, dual or triple axis configurations
  • Offers 12 or 24V operation
  • Features reverse battery protection and voltage transient protection
  • Operating temperature range of -40-85 C (-40-185 F)
  • Operating voltage is 8-32V DC
  • Provides single axis range of 360 degrees with 0.6 degree accuracy and dual axis range of +/-90 degrees with 0.25 degree accuracy
  • Features IP67 rating and is potted for protection from extreme environmental conditions
Request More Information
Fill out the form below to request more information about Trombetta J1939 Inclinometer
