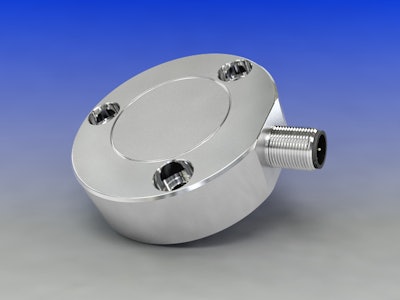

AMS Sensors POSIROT PRAS6 Non-Contact Analog Angle Sensor

The POSIROT PRAS6 angle sensor from ASM Sensors features is hermetically sealed for use in harsh operating conditions.

ASM POSIROT PRAS6r 300dpi 575715e2741f6
Asmsensors 10055038

ASM Sensors introduces the POSIROT PRAS6 non-contact analog angle sensor.

  • Measures angular displacement and position of rotating objects from 0-360 degrees using magnetic "Hall Technology"
  • Magnetic encoder technology is entirely contactless and solid state technology, enabling resistance to shock and vibration
  • Includes robust laser welded stainless steel 1.4404 housing
  • Housing is hermetically sealed and therefore especially suited for applications with humid, wet and dirty environments including underwater
  • Withstands aggressive fluids and is suited for hygiene-critical applications with intensive cleaning and sterilization processes
  • Sealing capability protection class to IP69K
  • Housing can be equipped with redundant electronics for safety applications
  • Measurement ranges are 0-15 degreesto 0-360 degrees (in 15-degree increments)
  • Outputs are available as either voltage (0.5-10V, 0.5-4.5V) or current (4-20 mA)
  • Resolution is +/-0.3% (60-360 degrees) and +/-0.1% (15-45°)
  • Linearity specification is +/-0.3% of full scale
