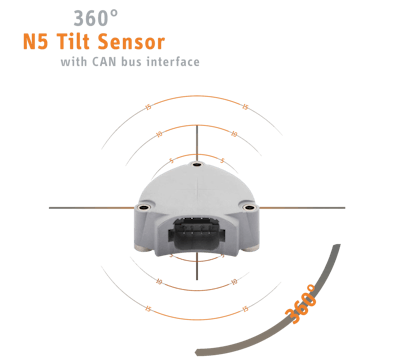

N5 360 degree Tilt Sensor from elobau Sensor Technology Inc.
The N5 Tilt Sensor from elobau provides an integrated CANopen output with J1939 protocol according to ISO 11898.
- Based on MEMS technology for reliability in demanding environments such as material handling, construction, agricultural and industrial vehicle applications
- Measuring range of 360 degrees with the one axis version, or 180 degrees with the two axis version
- Available with up to four configurable switching points and a selectable switch-on/switch-off delay per switching point
- Neutral position signal can be adjusted using an infrared remote control or via the CANbus
- Compact, flat housing; easily mountable in confined space
- IP67 protected
- Operating temperature range from -40-85 C (-40-185 F) temperature range
- Electrical connections through a Deutsch or M12 connector
- CANopen protocol offers various options such as baud rate selection or direction of rotation
- 9-32V DC supply voltage is suitable for battery operation in vehicles
