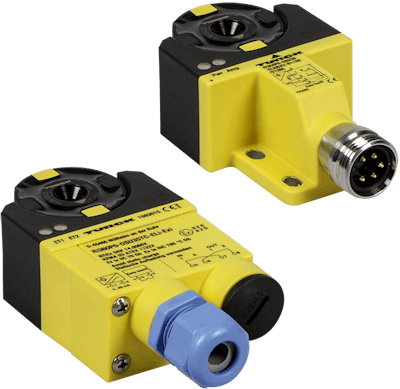

TURCK RI360-DSU Open Faced Inductive Angle Sensors

The Turck RI360-DSU open faced inductive angle sensors for harsh environments are available in two versions, one of which features ATEX and IECEx approvals.

RI360 DSU Turck 57a48bfc7197a

Turck announces the release of the RI360-DSU open faced inductive angle sensors.

  • Provides customers with rotary valve sensing solution suited for harsh environments
  • One version includes stainless steel Minifast connector and the other, using a terminal chamber, provides customers with ATEX and IECEx approvals
  • Utilizes inductive resonant circuit measuring principle
  • Features open face sensor design for rotary valve sensing
  • Delivers analog or discrete outputs and provides flexible mounting options
  • Monitors quarter turn valves and three-way valves, while also detecting valve position during cleaning cycles
  • Capable of detecting wear of seals, saving downtime
  • Available with switching or analog outputs
  • Allows for continuous 360 degree contactless position measurement
  • Features protection rating of IP67 and rugged, compact housing design
  • Wear-free sensing capabilities
  • Temperatures range from -25-75 C/-13-167 F (EXI version limited to 70 C/158 F)
  • Suitable for wide range of applications including valve automation, steering position feedback and dancer arm control
