DIS Sensors QG Series Inclinometers

DIS Sensors' QG Series inclinometers feature MEMS technology and a modular design to easily adapt to various applications.

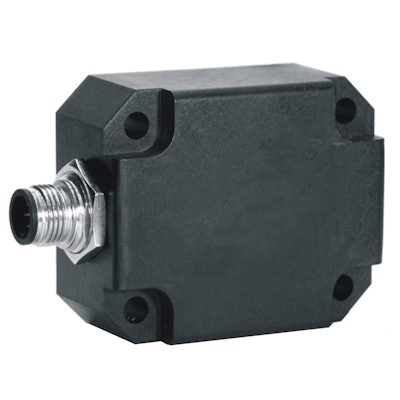

Inclination sensor 57dc412566962
Logo DIS 57dc3efac27ac

The QG Series of inclination sensors from DIS Sensors measure angles in 1 or 2 axes.

  • Based on robust MEMS technology in which capacitance differences can be converted into an analogue voltage within a micro-mechanical sensor chip
  • Analogue voltage is proportional to angle to which sensor is exposed
  • Modular design makes it easy to adapt sensors to specific requirements
  • Single axis measurement range is ±10 degrees, ±30 degrees, ±90 degrees and 0–360 degrees
  • Double axis measurement range is ±10 degrees, ±30 degrees and ±90 degrees
  • Meets Functional Safety SIL2/PLd
  • Energy supply is 5V DC or 10-30V DC
  • Provides analog output of 0.5-4.5V or 4-20 mA
  • Digital output is CANopen (Safety), RS232
  • Features accuracy up to 0.02 degrees depending on model and range
  • Includes protection to IP67 (optional IP68 of IP69K)
  • Programmability is dependent upon model
