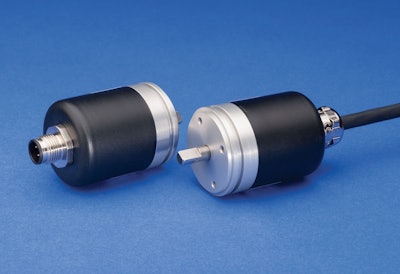

Novotechnik RMB 3600 Series Absolute Multi-Turn Angle Sensors

The Novotechnik RMB 3600 Series absolute multi-turn angle sensors are sealed to IP69K for use in harsh operating environments and withstand shock to 50 g.

Novotechnik 57f2a857c47af

Novotechnik U.S. introduces the RMB 3600 Series of absolute multi-turn angle sensors.

  • Non-contact design
  • Features galvanized steel housing and stainless steel shaft with up to 100 N working shaft load for HD version
  • Sealed up to IP69K, depending on version
  • Included enhanced giant magnetic resistance (EGMR)
  • Counts turns even when power is removed, and retains turn count and angle information for years without power
  • Does not require batteries
  • Operating speed is up to 12,000 rpm
  • Features 36.5 mm (1.4 in.) profile, count to 16 turns, angular position 0-5,760 degrees, resolution to 18-bit (SSI)/16-bit for other outputs, and repeatability of 0.5 degrees or better
  • Offers typical independent linearity of  ±0.03% F.S. at 16 turns
  • One and two channel versions are available
  • Output options are 0.1-10V, 4-20 mA, and 10-90% of power supply and SSI
  • Available in connector or cable versions as well as 5 and 24V supply models
  • Operating temperature range is -30-85 C (-22-185 F) and 0-98% RH, non-condensing
  • Withstands shock to 50 g and and vibration to 20 g
