LORD Corp. MV5-AR Rugged Inertial Sensors

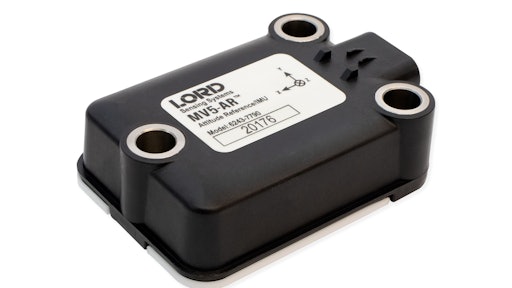

The MV5-AR is a vertical reference sensor for acceleration, rotation rate, pitch and roll.

Mv5 Ar Whitebg
Parker Lord Logo

The LORD Sensing MV5-AR measures dynamic inclination, acceleration and angular rate in challenging environments such as those encountered by heavy-duty on- and off-highway equipment.

  • Auto-Adaptive Extended Kalman Filter (EKF) removes errors associated with vibration, sudden linear motions, and quake, resulting in true reading of inclination under all conditions
  • Power and mounting flexibility make it a single-part solution for various applications
  • Full accuracy over entire operational temperature range of -40-85 C (-40-185 F)
  • High performance 6-DOF MEMs sensor suite provides best possible accuracy regardless of mounting angle
  • Mechanical isolation technology ensures high shock resistance and reliability
  • Based on LORD Sensing's fifth generation industrial/aerospace solid-state MEMS accelerometer and gyro inertial sensor technology
  • Compact and rugged reinforced PBT housing is fully sealed for immersion, pressure wash (IP67, IP69K)
  • Low-cost, rugged, reliable AMPSEAL 16 connector
  • Optional metal guard plate protects sensor and connector - permits connector insertion/removal
  • Low-cost, compact size
  • Full 360-degree measurement range about all axis
  • Out-of-the-box solution reduces development time
  • Provides inertial and slope J1939 or CANopen messages in standard configurations
  • Customized CAN protocols and messages are available
