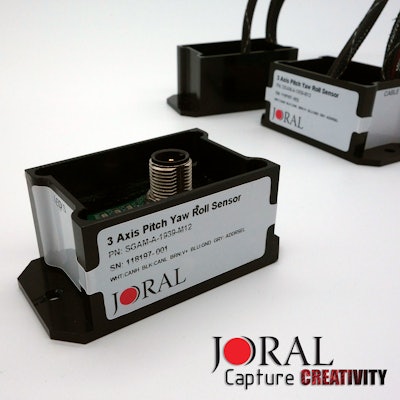

Joral GAM Series Inclinometers for Pitch, Yaw, and Roll

The Joral GAM Series inclinometers take input by a gyroscope, accelerometer, and magnetometer to provide three-axis output for X, Y, and Z in addition to pitch, yaw, and roll.

Jor520 Joral Sgam
Logo Page1 400

Joral LLC announces the release of its GAM Series SGAM and DGAM incline sensors, which are G-force compensated inclinometers that provide feedback for pitch, yaw, and roll.

  • Utilizes sensor fusion, the combining of more than one complementary sensing method
  • Takes input by a gyroscope, accelerometer, and magnetometer to provide three-axis output for X, Y, and Z in addition to pitch, yaw, and roll
  • Provides steady feedback during motion, allowing users to eliminate complex sensor networks with a single G-force compensated inclinometer
  • Users can place one sensor on application to get real-time feedback for absolute control rather than depending on encoders, string pots, laser gates, and proximity sensors to monitor position of a ladder, fork or platform
  • Rated with standard environmental protection of IP67, IP69k capable
  • 100% encapsulated
  • Eliminates drawback of accelerometer-based incline sensors
  • J1939 and CANopen capable
  • Available in convenient form factor with common connection options
  • Not influenced by acceleration or external motion
