Novotechnik Vert-X 2800 Series Angle Sensors

The Novotechnik Vert-X 2800 Series of angle sensors feature digital interface options of J1939 CANbus as well as SPI and PWM.

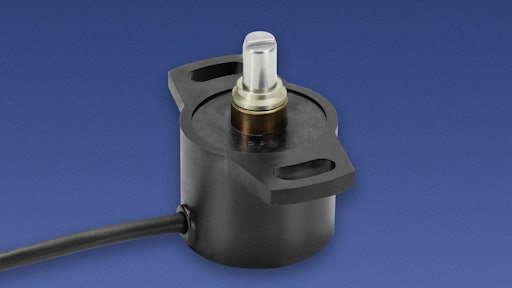

Vert X28 Rgb

Novotechnik U.S. introduces the Vert-X 2800 Series of sensors that measure angular position.

  • Converts rotational angle into analog or digital output
  • Digital interface options include J1939 CANbus as well as SPI and PWM
  • J1939 CANbus option enables peer-to-peer or broadcast signaling
  • Available in single and fully redundant versions
  • Measurement range is 0-360 degrees with repeatability of 0.1 degree
  • Available analog outputs are 4-20 mA, 0.1-10V, 10-90% of supply voltage and 5-95% of supply voltage
  • Option of up to two programmable TTL-level switches
  • Users can select stock part to simply measure angle or a configurable one using a tool connected to PC called Easy Adapt
  • Possible configurations include start- and end-angles for less than 360-degree maximum range, index point, cw or ccw indication, calibration settings and non-linear curves
  • Housing base diameter is 28 mm (1.1 in.)
  • Provides up to 14-bit resolution and linearity to ±0.1% of measurement range
  • Sealed to IP65
  • Life is ≥ 50 million movements and MTTF is over 100 years
  • Suited for industrial, medical and off-highway vehicle applications with operating temperature range of -40-85 C (-40-185 F)
