Novotechnik WAL 340 Compact Hollow Shaft Angle Sensor

The WAL 340 angle sensor has a measurement range of 0-290 degrees.

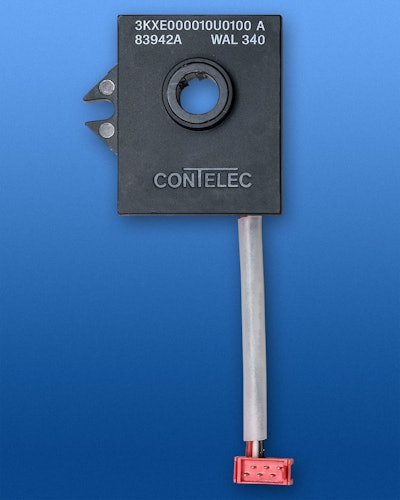

Wal 340 5x4 300dpi

Novotechnik U.S. introduces the WAL 340 hollow shaft angle sensor that provides absolute, rotary position.

  • Measures 32 x 39 mm
  • Notch built into housing aids alignment
  • Measurement range of 0-290 degrees
  • Mechanical range is continuous 360 degrees with no stop
  • Accepts 8 mm D-Shaped shaft
  • Resolution of < 0.3 degrees, repeatability of 0.3 degrees and independent linearity of ±1% of measurement range
  • Absolute sensor design
  • Continues to track angle even if power is removed, reporting correct position when power is restored
  • Minimum life of 20 million mechanical movements
  • Protected from ingress of water and dust to IP65
  • Cable and connector versions are available
