Axiomatic AX060900, AX060910 and AX060911 Triaxial Inclinometer Gyroscope

Introduced at bauma 2019, the Triaxial Inclinometer Gyroscopes measure pitch and roll inclination angles in full ±180-degree orientation range.

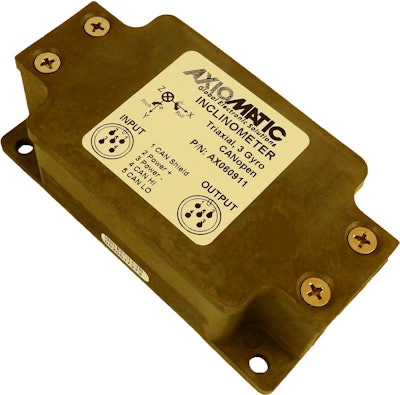

Ax060911 300dpi
Axiomatic Logo 2019

Axiomatic now offers Triaxial Inclinometer Gyroscopes for moving machines, the AX060900, AX060910 and AX060911.

  • Measures pitch and roll inclination angles in full ±180-degree orientation range
  • Angles can be compensated by 3D gyroscope to minimize the influence of dynamic linear accelerations caused by vibrations and machine operational movements
  • Can also output: gravity angle; pitch, roll and yaw angular rates; and unit accelerations in three orthogonal directions
  • Transmits angular data over CANbus using standard J1939 protocol
  • Model AX060910 offers greater shock resistance
  • Original configuration can be changed using Axiomatic Electronic Assistant PC-based configuration tool
  • Applications include level, tilt, pitch and acceleration monitoring in agricultural, mining and other off-highway equipment
