POSITAL Explosion-Proof TILTIX Inclinometers

POSITAL's explosion-proof TILTIX inclinometers comply with IECEx and ATEX directives, enabling use in hazardous environments.

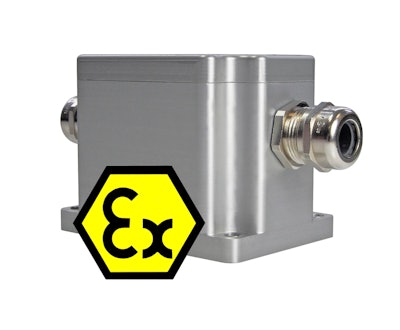

Press Photo ex Proof Tiltix
POSITAL FRABA 56cf5586b503f

POSITAL has extended its TILTIX family of inclinometers (tilt sensors) to include explosion-proof models designed to operate safely in environments that contain potentially dangerous levels of explosive dust or gases.

  • Certified in compliance with IECEx and ATEX directives
  • Suitable for use in mines, oil and gas facilities, agricultural applications, and more
  • Ensures there are no hotspots or exposed electrical components that could ignite fires or cause explosions in the presence of flammable dust or gases
  • Certified for use in mines and underground (Group I, Ex I M2 Ex e mb I Mb) and in above-ground workplaces (Group II,  EX II 2G Ex e mb IIc TX Gb – explosive gases – and EX II 1D Ex ta IIIC TX Da IP65 – flammable dust)
  • Single-axis (0-360 degrees) or dual-axis (± 80 degrees) versions
  • Features resolution as high as 0.01 degree
  • Accuracy is up to + 0.1 degree
  • Available communications interfaces include DeviceNet, CANopen, Modbus RTU, SSI and analog output
  • Analog models can be programmed so that the full range of electrical output is set to span a predetermined range of mechanical motion, significantly improving control system accuracy
  • Rugged aluminum or 316 stainless steel housings are offered, with other materials available by special order
  • Housings have environmental protection ratings of up to IP67


Find the explosion-proof TILTIX inclinometers at POSITAL's IFPE booth S84147 during CONEXP-CON/AGG & IFPE 2020.

Read more show news on our dedicated IFPE & CONEXPO channel.
