TILTIX Inclinometers

FRABA POSITAL introduces its TILTIX inclinometers which support various types of electronic interfaces including analog, serial and CANopen.

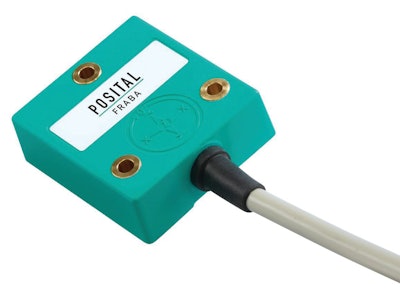

Fraba Tiltixinclinometer 11210847
POSITAL FRABA 56cf5586b503f

FRABA POSITAL’s robust and versatile TILTIX inclinometers are now available with integrated 1, 2, 5 or 10 meter connecting cables.

  • Supports variety of electronic interfaces, including analog (voltage/current), serial (SSI), DeviceNet and CANopen
  • Single axis (360 degrees) or two-axis (+/- 80 degrees) models are available
  • Suitable for use in harsh outdoor conditions
  • Glass fiber reinforced PBT housings and PU encapsulated electronic components provide dust and moisture resistance
  • Rugged internal components can withstand shock loads of up to 100g and vibrations as high as 20g
  • Applications include construction and agricultural machinery, mobile equipment, cranes and lifts, and drilling/mining equipment
  • Output is individually calibrated at factory and temperature compensated to ensure accuracy in any environment
  • Available packaged in extra-rugged die-cast aluminum housings designed to withstand accidental impact loads from tools, rocks or unsecured pieces of equipment
  • Features reinforced connection points for heavy-duty cables and connectors, mounting holes for 1/4-inch (M6) bolts and solid flanges that won’t be damaged by high bolt-tightening torques
  • Includes IP69K-rated protection from dust, water or high-pressure sprays
