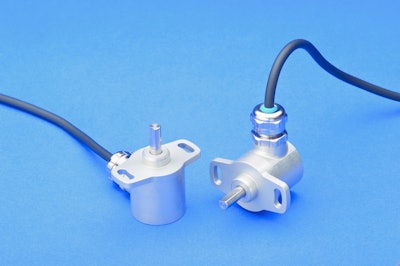

Vert-X 28HD Series Non-Contact Angle Sensors

The Vert-X 28HD Series non-contact angle sensors from Novotechnik offer a 0 to 360 degree measurement range.

Novotechnik Vertx28hdnoncontac 10963631

Novotechnik U.S. introduces the Vert-X 28HD Series of non-contact angle sensors which are designed for use in harsh environments, including use in off-highway and public transportation vehicles.

  • Features aluminum housing
  • Sealed for protection against ingress of liquids and solids to IP69K
  • Provides 0 to 360 degree measurement range, 12-bit, repeatability of 0.1 degrees or better, and maximum hysteresis of 0.1 degree
  • Output options are 0.1 to 10V, 0.5 to 4.5V or 4 to 20 mA
  • Positive gradient clockwise or counterclockwise output options are available
  • Features minimum life of 360 million movements and MTBF is 185 or 240 years– depending on version
  • Withstands shock and vibration to 50g and 20g respectively
  • Operating and storage temperature range is -40 to 85 C
