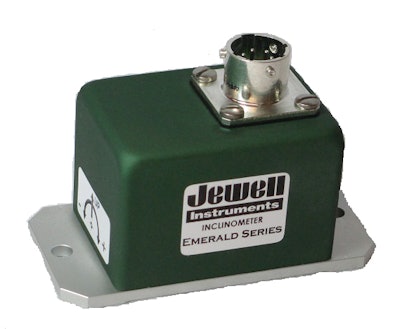

Emerald Series Inclinometers

The Emerald Series inclinometers from Jewell Instruments can withstand up to 500 g shock and provider high rates of accuracy.

February 10, 2014
Jewell Instruments
Jewellinstruments Emeraldserie 11308712

Jewell Instruments announces the addition of its Emerald Series low-cost inclinometer sensors to the Inertial Sensors and Controls product group.

  • Delivers higher accuracy than comparable MEMS sensors
  • Available in a small rectangular designed package, enabling installation in space-constrained areas
  • Can withstand up to 500g shock
  • Offers single or dual power input
  • Available in custom ranges and bandwidths
  • Can be used for a variety of industrial applications including wheel alignment, construction equipment, antenna positioning and tilt safety systems
