Novotechnik Vert-X 2400 Series Angle Sensors

The Novotechnik Vert-X 2400 Series of compact angle sensors feature a measurement range of 0 to 360 degrees.

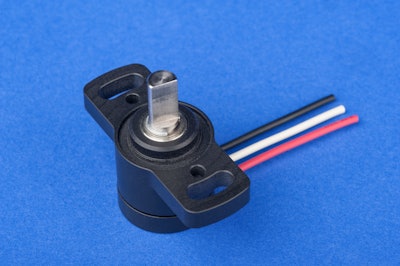

Vert X 24 RGB 550afc4f0b56b

Novotechnik U.S. introduces the Vert-X 2400 Series of compact angle sensors.

  • Diameter of the housing base measures 24 mm
  • Convert rotational angle into a voltage output
  • Available in single and fully redundant versions
  • Measurement range is 0 to 360 degrees with repeatability of 0.1 degree
  • Includes 12-bit resolution and linearity of ±1% of measurement range
  • Sealed to IP67
  • Delivers lifespan ≥ 20 million movements and MTTF is over 600 years
  • Well suited for applications with an operating temperature range of -40 to 125 C
  • Features high immunity to emissions, meeting or exceeding five EN 61000 and two EN 55000 standards
Fill out the form below to request more information about Novotechnik Vert-X 2400 Series Angle Sensors
