Novotechnik RSX-7900 Series Angle Sensors

The RSX-7900 Series angle sensors from Novotechnik feature IP69K ingress protection and a lifespan of over 100 million movements.

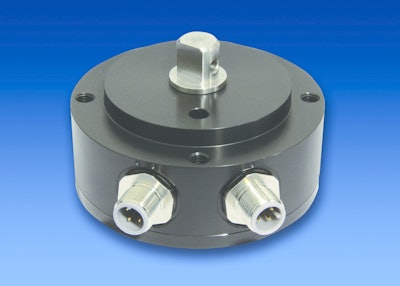

Novotechnik RSX7900SeriesAngleSensors 5696a2a7a9e91

Novotechnik U.S. introduces the RSX-7900 Series of angle sensors.

  • Provides up to IP69K ingress protection
  • Features long life of >100 million movements and ISO13849 PL-d safety compliance
  • Non-contacting design
  • Available in six standard measuring ranges with angles from 0-60 to 0-360 degrees with unrestricted rotation
  • Resolution is 12-bit across a 4-20 mA output with linearity to ±1% at ≥ 90 degrees
  • Repeatability is 0.2 degrees
  • Update rate is 5 kHz
  • Single and dual redundant versions are available
  • Life specification is valid under high shock and vibration conditions up to 50 and 20 g respectively
  • Available with CANopen interface
  • Features anodized aluminum housing with stainless steel shaft for enhanced corrosion protection with salt and spray resistance
  • Double row angular contact ball bearing design provides axial and radial shaft loading up to 300 N
  • Measures 70 mm in diameter and has nominal length of 35 mm
  • Available with wide choice of shaft styles for maximum installation flexibility
  • Operates from 9-34V DC which suits 12 and 24V off-highway vehicle and construction equipment applications
