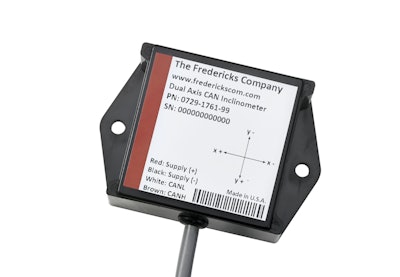

The Fredericks Company introduces the 0729-1761-99 Dual Axis CANbus SAE J1939 Inclinometer that can be used to prevent unsafe operation of industrial machinery.
- Measures and signals tilt from level position in applications such as construction and agricultural machinery, boom lifts, forestry vehicles, forklifts and telescopic handlers
- Uses Fredericks TrueTILT wide-range electrolytic tilt sensor and signal conditioner to provide reliable tilt measurement
- Measures angular movement of industrial machinery in applications that require a wide operating range and exceptional accuracy
- Contained in durable high-temperature Noryl plastic housing with urethane potting
- Withstands extreme environmental conditions
- Features low power consumption, small size, long life and minimal output drift
- Controller area network (CAN) specifications are factory set according to user requirements, with the standard unit using the SAE J1939 vehicle bus protocol
- IP66 rated, CE certified and RoHS compliant
- Includes supply voltage of 6-40V DC, ±25 degrees dual axis measurement and operating temperature of -40-85 C
