MAGNETOCODE Encoders

MCD rotary encoders with analog or digital output are a cost-effective choice. Rugged casings and advanced seals stand up to harsh conditions.

June 21, 2010
POSITAL Inc.

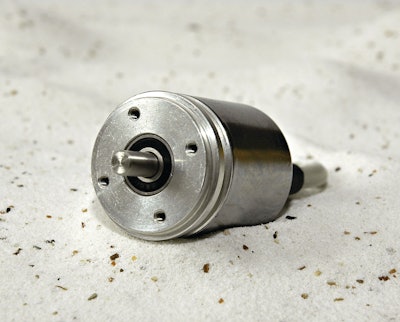

Pressphot 10147711
POSITAL FRABA 56cf5586b503f

POSITAL Inc. introduces an analog interface for its MAGNETOCODE (MCD) family of rotary encoders.

  • Available in single- or multi-turn models that provide several advantages over conventional potentiometers
  • Use non-contacting Hall-effect sensors to measure rotations
  • Range adjustment feature: encoder can be "taught" rotary positions that correspond to the limits of travel of the machine that it's connected to
  • Internal electronics will automatically scale the output so that the full range of signal voltage exactly covers the full range of travel of the machine
  • Available in solid and hollow shaft versions
  • Diameter of 36.5 mm
